Product Introduction

YZRE and YZE series electromagnetic braking motors are composed of YZR and YZE series motors plus direct current electromagnetic brake, which are in compliance with the mechanical industrial codes JB/T7077 and JB/T7563.this series of motors are featured with high overload capability and mechanical strength, compact structure, controllable torque, easy to control, use and maintenance. These motors are suitable for the following work conditions: short time or intermittent running; frequent starting, braking, sometimes have overload lifting and metallurgy equipment translation and driving and braking on hoisting mechanism. Disk type brake is set in the motor, so that the motors have good braking effect.

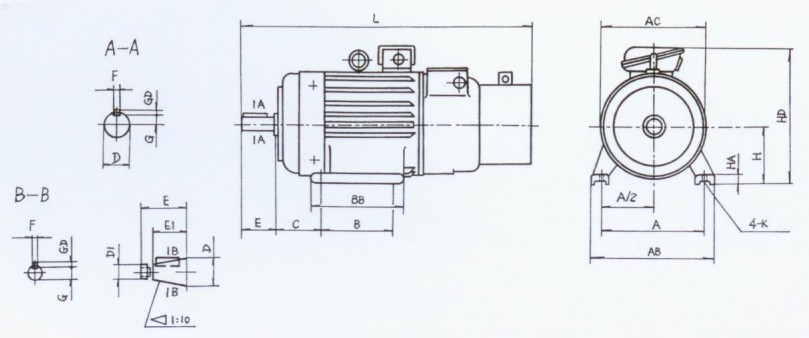

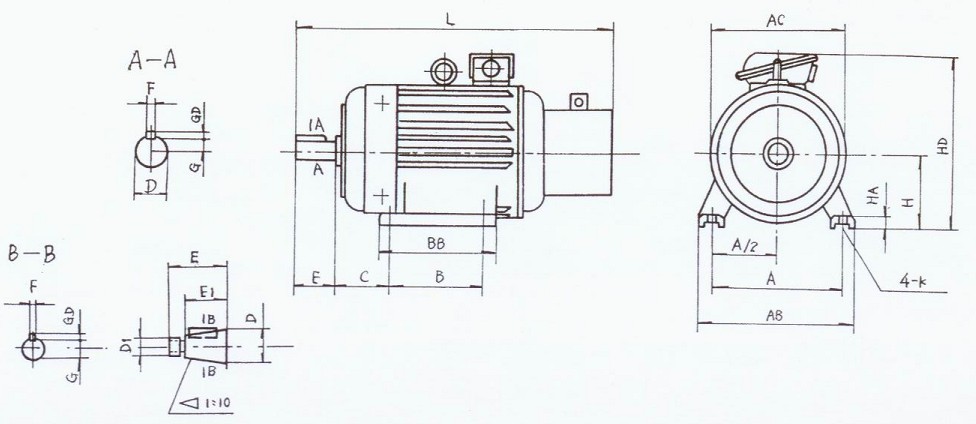

1.IM1001、IM1003 Horizontal installation, Frame with foot end shield without flange motor  YZRE112~250

mm



Frame
Mounting Dimension & Tolerance
Overall Dimension
H
A
A/2
B
Difference of B on two sides
C
Difference of C on two sides
K
Dia. Of screw
D
D1
E
E1
Key
key way
AC
AB
HD
BB
L
HA
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
 Dimension
Tolerance
Dimension
Tolerance
F(h9)
GD
F(h9)
G
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
尺寸
Tolerance
112M
112
0
-0.5
190
±0.70
95
±0.50
140
±0.70
0.70
70
±2
0.30
12
+0.43
0
M10
32
+0.018
+0.002
–
80
±0.37
﹣
10
0
-0.036
8
0
-0.09
10
0
-0.036
27
0
-0.2
245
250
335
235
700
18
132M
132
216
108
178
89
38
33
285
275
365
260
755
20
160M
160
254
±1.05
127
±0.75
210
±1.05
1.05
108
±3
0.45
15
M12
48
110
±0.43
14
0
-0.043
9
14
0
-0.043
42.5
325
320
425
290
892
25
160L
254
335
934
180L
180
279
139.5
279
121
55
-
M36×3
82
19.9
360
360
465
380
1026
200L
200
318
159
305
133
19
+0.52
0
M16
60
M42×3
140
±0.50
105
16
10
16
21.4
405
405
510
400
1145
28
225M
225
356
178
311
149
65
23.9
430
455
545
410
1350
250M
250
406
±1.40
203
±1.0
349
±1.40
1.40
168
±4
0.60
24
M20
70
M48×3
18
11
0
-0.011
18
25.4
480
515
605
510
1500
30



2.IM1001、IM1003Horizontal installation, Frame with foot end shield without flange motor  YZE112~250

mm



Frame
Mounting Dimension & Tolerance
Overall Dimension
H
A
A/2
B
Difference of B on two sides
C
Difference of C on two sides
K
Dia. Of screw
D
D1
E
E1
Key
key way
AC
AB
HD
BB
L
HA
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
 Dimension
Tolerance
Dimension
Tolerance
F(h9)
GD
F(h9)
G
Dimension
Tolerance
Dimension
Tolerance
Dimension
Tolerance
尺寸
Tolerance
112M
112
0
-0.5
190
±0.70
95
±0.50
140
±0.70
0.70
70
±2
0.30
12
+0.43
0
M10
32
+0.018
+0.002
–
80
±0.37
﹣
10
0
-0.036
8
0
-0.09
10
0
-0.036
27
0
-0.2
245
250
335
235
550
18
132M
132
216
108
178
89
38
33
285
275
365
260
625
20
160M
160
254
±1.05
127
±0.75
210
±1.05
1.05
108
±3
0.45
15
M12
48
110
±0.43
14
0
-0.043
9
14
0
-0.043
42.5
325
320
425
290
762
25
160L
254
335
805
180L
180
279
139.5
279
121
55
-
M36×3
82
19.9
360
360
465
380
862
200L
200
318
159
305
133
19
+0.52
0
M16
60
M42×3
140
±0.50
105
16
10
16
21.4
405
405
510
400
980
28
225M
225
356
178
311
149
65
23.9
430
455
545
410
1170
250M
250
406
±1.40
203
±1.0
349
±1.40
1.40
168
±4
0.60
24
M20
70
M48×3
18
11
0
-0.011
18
25.4
480
515
605
510
1260
30

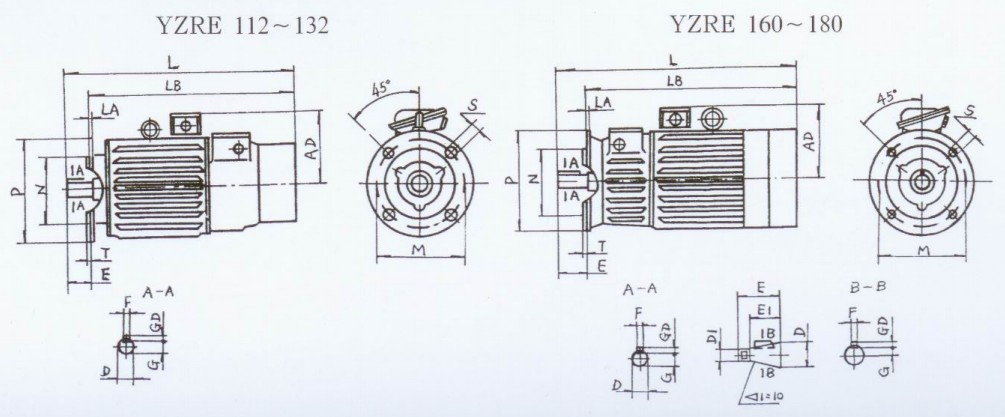

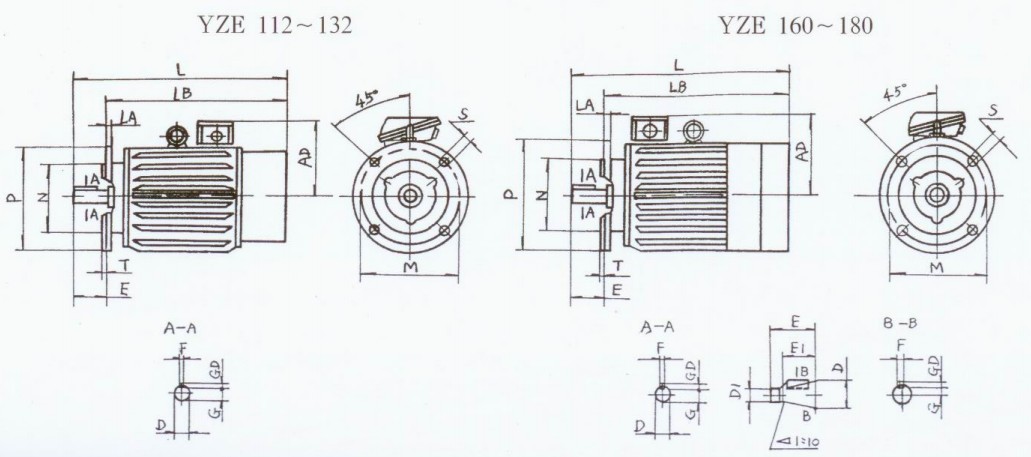

3.IM3001 & IM3003 motor horizontally installer,without footing under base frame and end cover with flange YZRE112~180

mm



Base frame numbe
Installation dimension and tolerance
Outline dimension
Flang number
M
N
P
T
S
Bolt
D
D1
E
E1
Key
Keyway
L
LB
AD
LA
F（h9）
GD
F(N9)
G
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Diameter
Quantity
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
112M
FF215
215
180
+0.014
-0.011
250
4
15
+0.43
0
M12
4
32
+0.018
+0.002
-
80
±0.37
-
10
0
-0.036
8
0
-0.09
10
0
-0.036
27
0
-0.2
600
610
220
14
132M
FF265
265
230
+0.016
-0.013
300
38
33
750
670
230
160M
FF300
300
250
350
5
19
+0.52
0
M16
48
110
±0.43
14
0
-0.043
9
14
0
-0.043
42.5
930
820
260
18
160L
980
870
180L
55
-
M36×3
82
19.9
1050
940
280



4.IM3001及IM3003 motor horizontally installer,without footing under base frame and end cover with flange  YZE112~180

mm

Base frame numbe
Installation dimension and tolerance
Outline dimension
Flang number
M
N
P
T
S
Bolt
D
D1
E
E1
Key
Keyway
L
LB
AD
LA
F（h9）
GD
F(N9)
G
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Diameter
Quantity
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
112M
FF215
215
180
+0.014
-0.011
250
4
15
+0.43
0
M12
4
32
+0.018
+0.002
-
80
±0.37
-
10
0
-0.036
8
0
-0.09
10
0
-0.036
27
0
-0.2
 565 485 220
14
132M
FF265
265
230
+0.016
-0.013
300
38
33
 645 565 230
160M
FF300
300
250
350
5
19
+0.52
0
M16
48
110
±0.43
14
0
-0.043
9
14
0
-0.043
42.5
 870 760 260
18
160L
 920 810
180L
55
-
M36×3
82
19.9
 1085 975 280

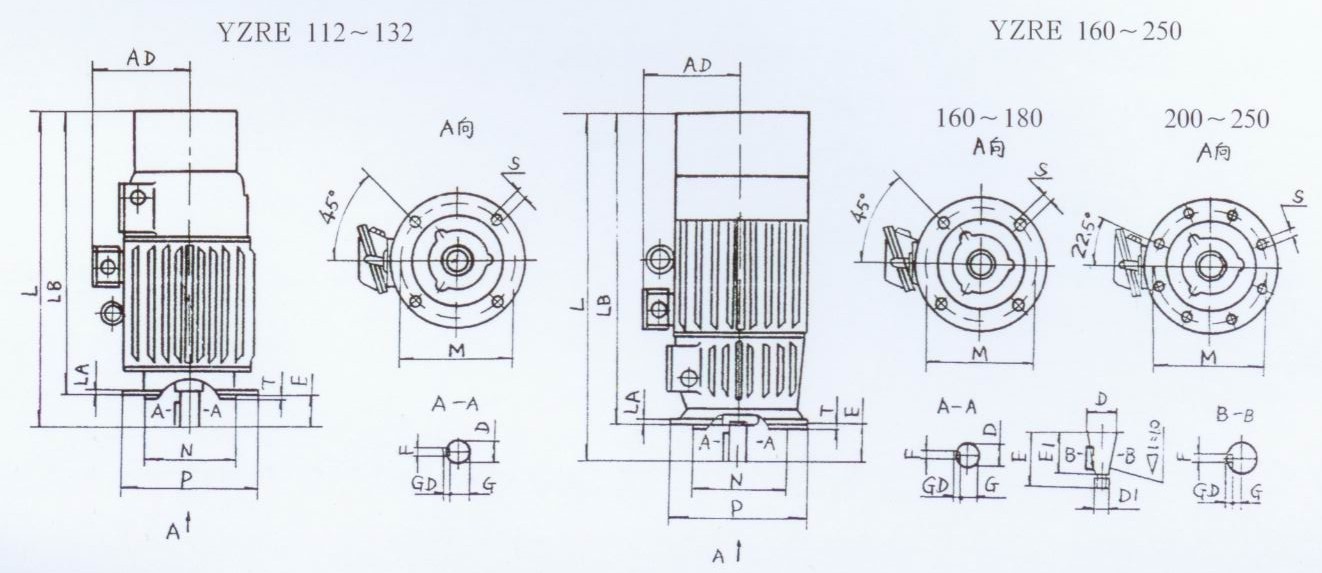

5.IM3011 & IM3013 Install vertical axis toward the docking station without the base, cover flange motor  YZRE112~250

mm

Base frame numbe
Installation dimension and tolerance
Outline dimension
Flang number
M
N
P
T
S
Bolt
D
D1
E
E1
Key
Keyway
L
LB
AD
LA
F（h9）
GD
F(N9)
G
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Diameter
Quantity
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
112M
FF215
215
180
+0.014
-0.011
250
4
15
+0.43
0
M12
4
32
+0.018
+0.002
-
80
±0.37
-
10
0
-0.036
8
0
-0.09
10
0
-0.036
27
0
-0.2
720
640
220
14
132M
FF265
265
230
+0.016
-0.013
300
38
33
750
670
230
160M
FF300
300
250
350
5
19
+0.52
0
M16
48
110
±0.43
14
0
-0.043
9
14
0
-0.043
42.5
930
820
260
18
160L
980
870
180L
55
-
M36×3
82
19.9
1050
940
280
200L
FF400
400
350
±0.018
450
8
60
M42×3
140
±0.5
105
16
10
16
21.4
1230
1090
320
20
225M
65
23.9
1320
1180
250M
FF500
500
450
±0.02
550
70
M48×3
18
11
0
-0.11
18
25.4
1550
1410
355
22


6.IM3011 & IM3013 Vertical installation, the shaft toward the docking station without the dock, cover flange motor YZE112~250

mm

Base frame numbe
Installation dimension and tolerance
Outline dimension
Flang number
M
N
P
T
S
Bolt
D
D1
E
E1
Key
Keyway
L
LB
AD
LA
F（h9）
GD
F(N9)
G
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Diameter
Quantity
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
Basic dimension
Limit deviation
112M
FF215
215
180
+0.014
-0.011
250
4
15
+0.43
0
M12
4
32
+0.018
+0.002
-
80
±0.37
-
10
0
-0.036
8
0
-0.09
10
0
-0.036
27
0
-0.2
 565 485
220
14
132M
FF265
265
230
+0.016
-0.013
300
38
33
 645 565
230
160M
FF300
300
250
350
5
19
+0.52
0
M16
48
110
±0.43
14
0
-0.043
9
14
0
-0.043
42.5
 870 760
260
18
160L
 920 810
180L
55
-
M36×3
82
19.9
 1085 975
280
200L
FF400
400
350
±0.018
450
8
60
M42×3
140
±0.5
105
16
10
16
21.4
 1170 1030
320
20
225M
65
23.9
 1320 1180
250M
FF500
500
450
±0.02
550
70
M48×3
18
11
0
-0.11
18
25.4
 1360 1220
355
22
