YP2 series are our new products researched and developed after absorbing advantage of foreign similar motor and optimizing design, which are featured as good frequency conversion, energy saving, good starting torque performance, high overloading capacity, good low speed, low noise, small vibration, reliable and safe running, beautiful appearance, power grade and installation dimension are in fully compliance with International Electro technical Commission （IEC）standards, which can be applied in each kind of driving devices that require speed adjusting such as light industry, textile, chemical industry, petrochemicals, metallurgy, lathes, pumps, Matching with high precision sensor to realize high precision closed loop running. This series motors are mouse cage type motors.
1. The motor can perform normal running at following conditions:
1.1 Environment air temperature is not more than 40℃.
1.2 Relative humidity ≤90%.
1.3 Altitude shall not be more than 1000m.
2.Motor rated voltage is 380V, rated frequency is 50Hz, also, according to user’s requirements, rated voltage, rated frequency and frequency adjusting requirements within 3 to 100 Hz can be determined. Constant torque output is implemented when it is below rated frequency, constant power output is implemented when it is above rated frequency, and speed adjusting range can be enlarged for vector control.
3.Motor’s continuous duty type is（S1）.
4.Junction method：Y junction for 4KW below, and Δ junction for 4KW above.

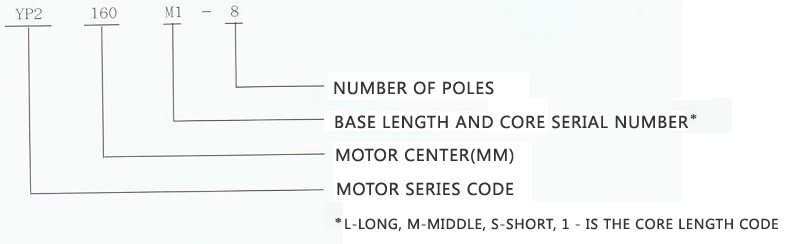

5.Model description:
|
