| Product Introduction |
| |
| Operating system and technical data |
2.1 Operating systemincludes seven modes--S2、S3、S4、S5、S6、S7 and S9（refer to G B755），Basic work system：S3, load continuity 40% ,operating cycle 10 minute.
2.2 Main technical data
2.2.1 Relation of rated power ,rotating inertia of rotator（Jm）and open-circuit voltage of wound rotator（U2）to corresponding base No.in basic operating system should be conformed to that specified in Table 2.

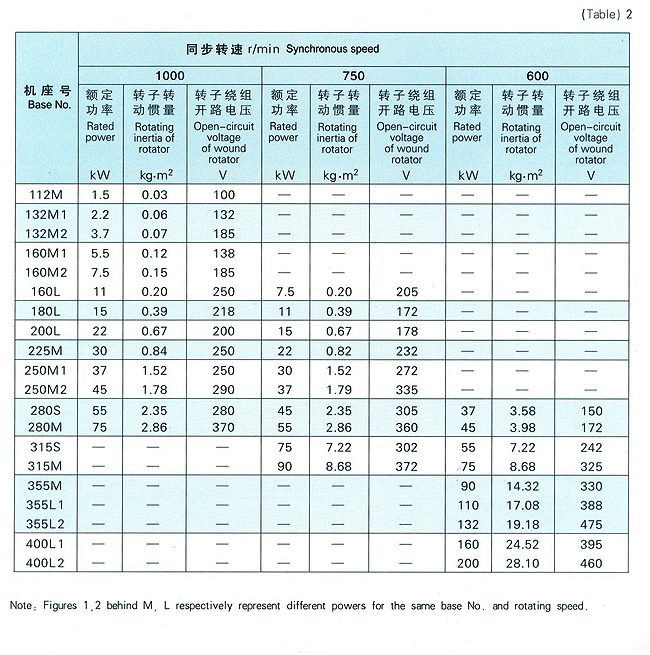

Table 2 |
 |
| Note：Figures1,2 behind M、L respectively represent different powers for the same base No. and rotating speed. |
 |
|   |
|
|
