Product Introduction
Operating system and technical data
2.1 Motor is applied for intermittent periodical load.There are for types of operating system,namely S2、S3、S4、S5 dependent on different load characteristics. Reference operating system is; if iperating system is S3,for single-speed it is 40%,and for it is 25%;at high-speed and 15% at low-speed(That is to say,if operating system is S3 ,duration ratio of load is 40%、25%、15% respectively and operating period is 10min)。
2.2 Main technical data。

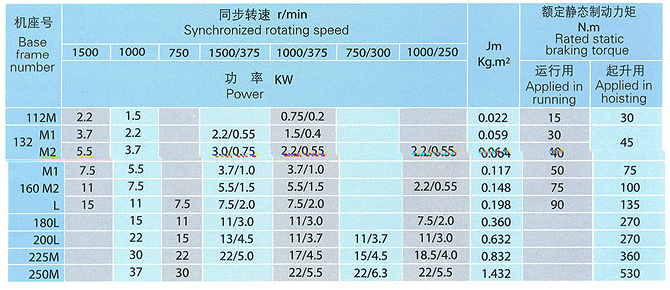

2.2.1 With reference operating system for motor ,corresponding relation of its rated power,moment of inertia of rotor (Jam)、static brake moment(YBZ & YBZS motor is nothing with static brake moment.)with its base frame number is compatible with Table 2。

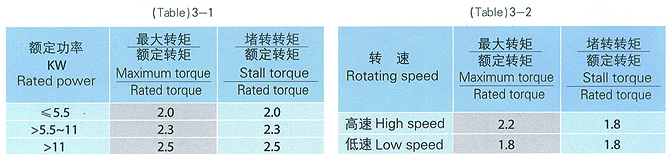

2.2.2 With rated voltage and reference operating system,ratio between maximum torque & stall torque with rated torque is no less than value regulated on Table 3-1(single-speed)and Table 3-2(two-speed)。
